Whipped a new wrap for the Nessmuk


Cro

American Grouch
Lifetime Supporter
Bushclass Instructor
Bushclass I
Joined
Sep 29, 2010
Messages
5,485
Likes
7,371
Location
The Canadian Shield
I've been using that double bit pretty heavy since I got it.

I'm not ready to write a full on review but I did want to provide some initial feedback.

As I understand it he is switching over to a new, more robust handle. I believe it'll be thicker but I haven't seen the new ones yet.

I can tell you that the handle as is, is thin and can be challenging to work with. It's also very slippery, if and when you get glancing blows it wants to twist hard in your hand.

I tried paracord first but that was too thick. I looked around for some alternatives and found a couple pictures of small axes like this that had twisted & waxed sinew for wraps.

I did two of them.

The first one, I used four strands of the 70# sinew, it's thicker than the standard 30# stuff. I waxed it with pure beeswax as I was doing the twist. Once it was wrapped I really went after it with the beeswax, rubbing heavy amounts into the wrap.

I then used a leather glove and friction to heat the wax, pushing and pulling it quickly through the glove. This did an excellent job of melting the wax in, and filling the grooves between between runs of the wrap. I finished that up by doing the same thing but this time with a 100% cotton shirt sleeve. This smoothed the whole thing out, and removed the tackiness of the wax.

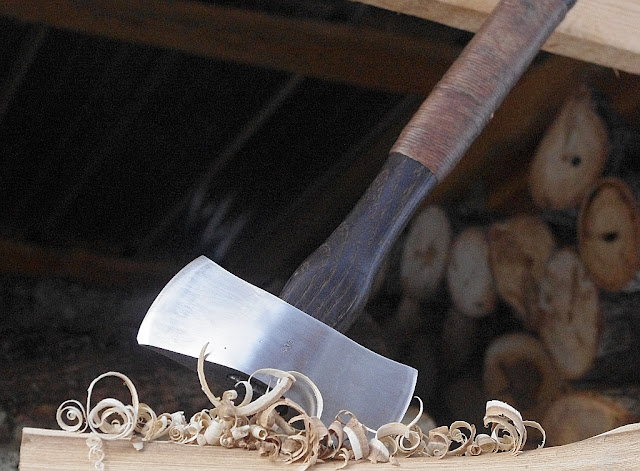

This is the result.













The second one, I used the standard 30# sinew but went with five strands and followed the same process as described above. It came out lighter in color and slightly thicker.

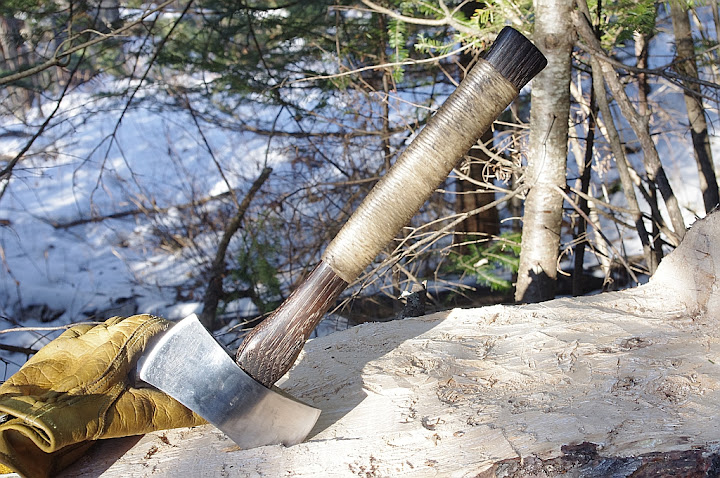

Here's what that looked like.





I'm quite pleased with the wraps. They are not sticky or tacky to the touch, but the grip is unreal, bare handed or with gloves on. There is NO twisting at all, control is improved and the handle is now perfect for working with. I used it quite a bit today with the wrap in place and it shows no ill effect. I'm anxious to see how well it holds up over time. I imagine if it starts to wear, I'll just reapply the beeswax coating.

I'm a new fan of waxed sinew wraps!

Last edited:
Very nice wrap job on the double bit. Turned out really good brother.

I have done that but with heavily waxed hemp twine for my trail hawk, works pretty well.

Did you have to use some sort of glue coating or just the beeswax doing the work and keeping it all in place?

-Brandon

Very nice wrap job on the double bit. Turned out really good brother.

I have done that but with heavily waxed hemp twine for my trail hawk, works pretty well.

Did you have to use some sort of glue coating or just the beeswax doing the work and keeping it all in place?

-Brandon

I used the whipping method from Bushclass Basic. You basically start with a U shape in the cord on the handle, wrap toward the closed part of the U. Pull your end inside that, and pull the tag. It pulls your loose end all the way down under the wrap itself. As I close off the tag end, I get it under the first couple wraps, pull tight and cut excess off. Heavy wax and it's holding solid.

I had the wrap the tag end in my leatherman pliers heavy and then pull with everything I had to get it you come through. The wax made it hell getting that part done.

That looks fantastic. I might have to try that on a skinny handle. Two very nice tools there.

Right on thanks, I understand what you meant by whipping now.

I get how the wax would hold everything solid and make it hell finishing the whipping. Maybe I can get my hands on some artificial sinew or something and redo the wrap on my trailhawk.

-Brandon

Looks great....I'm anxious to hear the full report on these in the future.

I think I am to the point where I am no longer going to open posts by Croatoan. You keep posting pictures of things that make my bank account smaller!

If you've built or repaired the guides on your fishing poles, you've used the same procedure as wrapping or "whipping" as some call it.

If you rub the wax into the surface and then heat the area carefully over a stove burner, heat gun, near a low fire, etc. you won't have to do all the rubbing and fiddly work. The wax will melt and penetrate deeply and give you just about the exact same surface.

Used the technique on a knife handle and a few other items a while ago.

Nice work! My Dad and I use the same rubbing technique when we make bowstrings from artificial sinew. We usually do it barehanded though. I've burnt my hands that way a few times!
